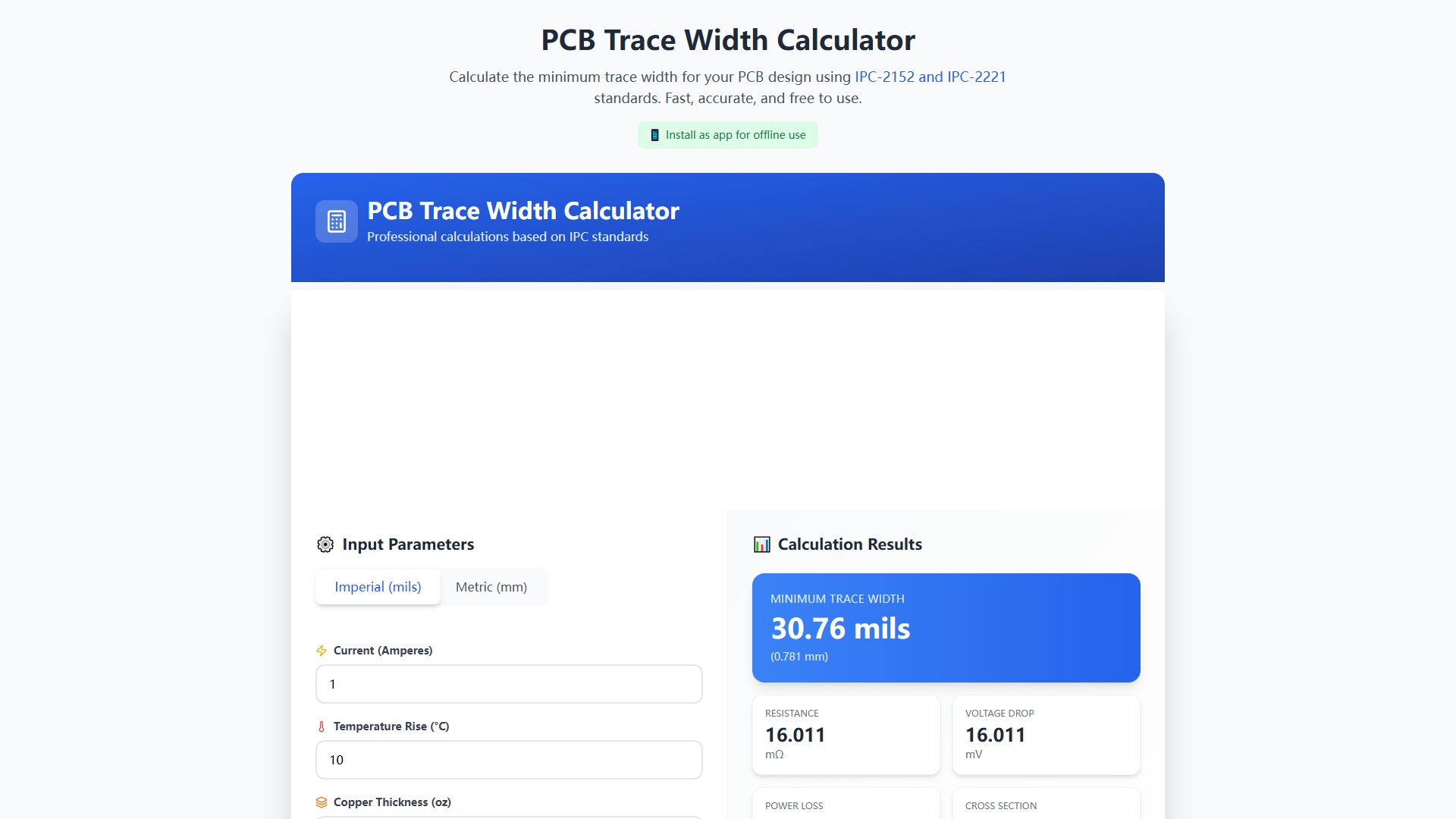

Professional PCB Trace

Share

Main Features

  • Trace Width Calculation: Calculate minimum trace width based on current, temperature rise, copper thickness, and layer type
  • Detailed Analysis: Provide resistance, voltage drop, power loss, and cross-sectional area calculations
  • Safety Margin Recommendations: Suggest using 20-50% wider traces than calculated minimum
  • Dual Standard Support: Support for both IPC-2152 (modern standard) and IPC-2221 (traditional standard)
  • Unit Conversion: Support for both imperial and metric units

Usage Process

  1. Enter current requirements (Amperes)
  2. Set acceptable temperature rise (10°C for conservative, 20-30°C for standard applications)
  3. Select copper thickness (0.5oz to 3oz)
  4. Choose layer type (external or internal)
  5. Get calculation results and safety margin recommendations

Target Users

  • PCB Design Engineers
  • Electronics Engineers
  • Circuit Board Designers
  • Hardware Developers

Core Advantages

  • Industry Standard Based: Strictly follows IPC-2152 and IPC-2221 standards
  • Precise Calculations: Provides detailed thermal and electrical parameter analysis
  • Free to Use: Completely free, no registration required
  • Practical Recommendations: Offers safety margins and best practice guidance
  • Offline Available: Supports installation as offline application

Typical Application Scenarios

  • LED strip power supply design (5A, requires 110mils trace width)
  • Microcontroller power rail design (0.5A, requires 7.2mils trace width)
  • Power supply main bus design (10A, requires 125mils trace width)
  • RF antenna feed design (0.1A, impedance control dominates)
  • Battery charging circuit design (2A, internal layer requires 70mils trace width)
  • Motor driver output design (8A, requires 95mils trace width)
  • Via Current Calculator
  • Impedance Calculator
  • Differential Pair Calculator
  • Current Capacity Calculator
  • Pad Size Calculator

Design Guides

Provides comprehensive PCB design resources including IPC standard comparison guides, high current PCB design, impedance control, and other professional content.

  • Visits : <5K
  • Collection Time:2025-09-16
  • Pricing Mode: Free

#Developer tools Free Website App
